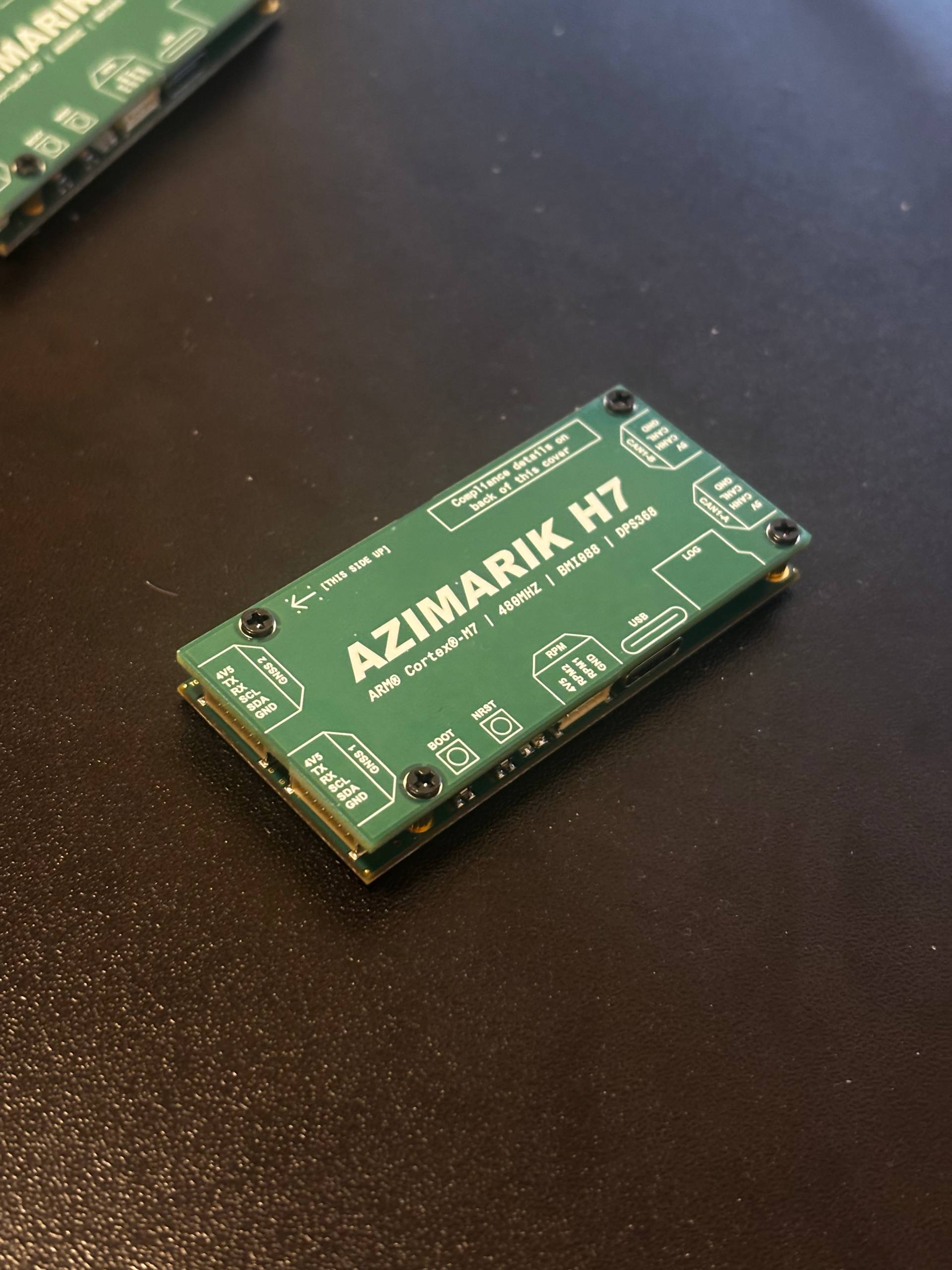

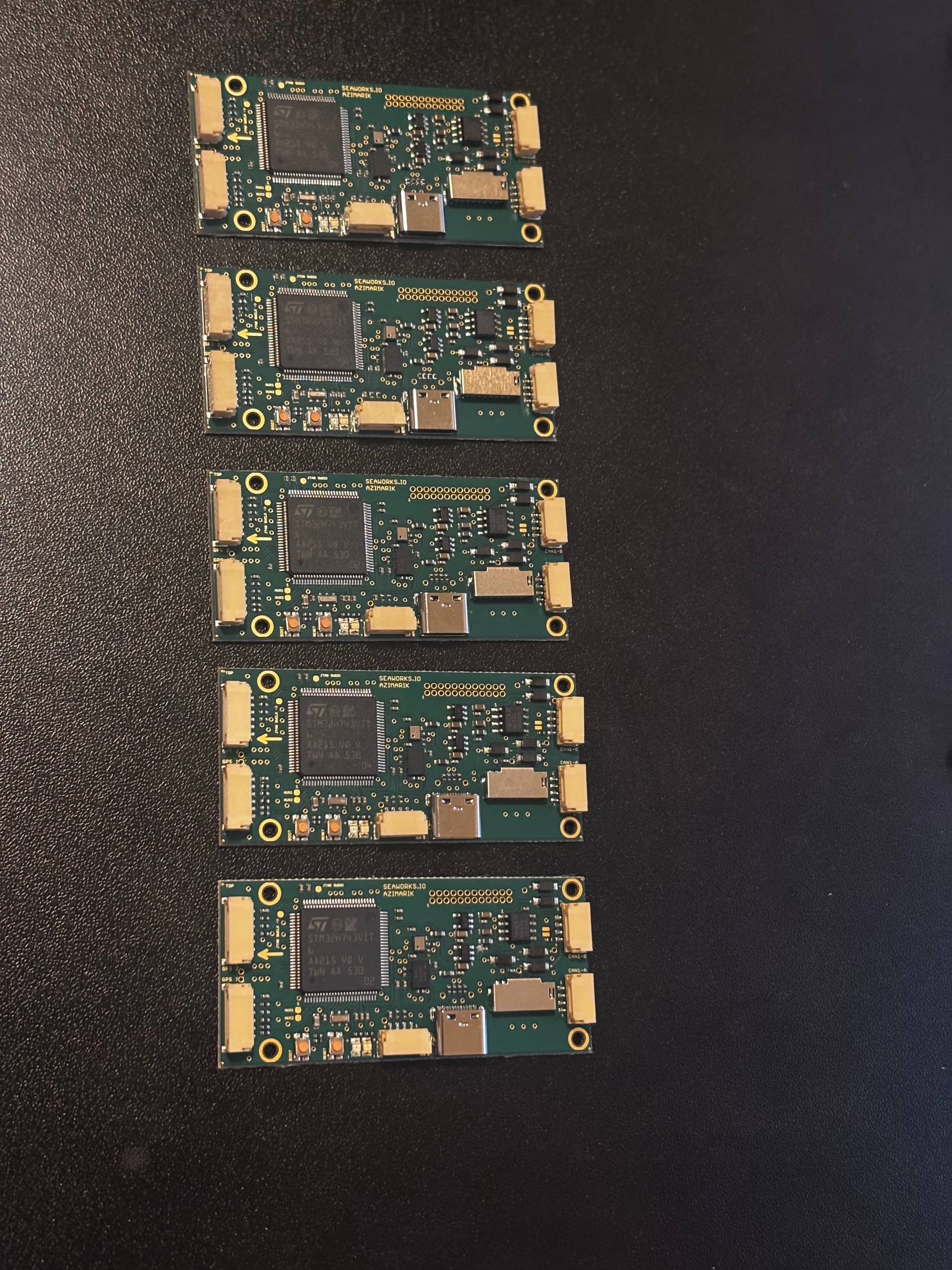

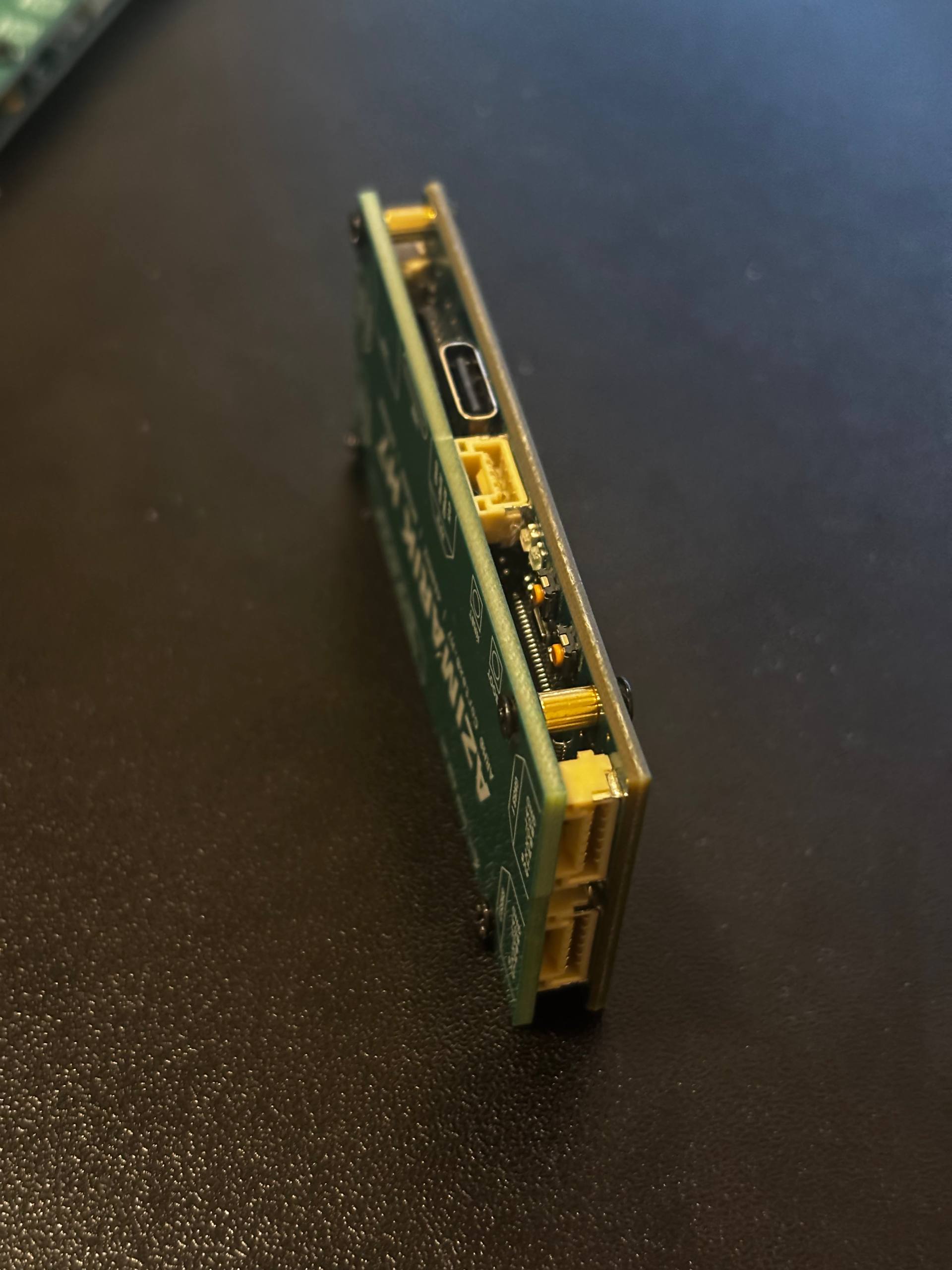

AZIMARIK Autopilot(with Ardupilot, PX4)
SKU: 1590
The use of this product, parts of it, certain software/hardware combinations, unsupervised use, may not be permitted in your country or require special authorization! Compliance to local laws is solely the responsibility of the user! This product is shipped without firmware; the user must install the firmware themselves and assumes full responsibility for doing so. The warranty and support applies exclusively to the hardware (printed circuit board and components) and does not cover any software-related issues.
Peripherals
GNSS: We recommend using UBlox M10F modules or better.
M8 / M10 receivers alone provide an accuracy of 1-2m. Their advantage is that they don't require any further accessories and work well anywhere.
To achieve sub-meter accuracy, we recommend using a RTK capable systems and GNSS receivers like the F9P.
More information about configuring RTK here.
A good tuning of all PID parameters is also required.
The AZIMARIK supports two GPS/GNSS receivers and allows GPS blending, which can improve the accuracy and reliability of the navigation system.
More information about GPS blending here.
RX: This module only works with digital serial protocols. Therefore only RX modules with SBUS, IBUS or CRSF (ELRS), SUMD. Consider using ELRS when building a new system.
Check the list of supported RX systems for ArduPilot.
For new builds, we recommend using a 7.2V or 8.4V architecture for the BEC, servos, and other peripherals. A higher voltage architecture provides several advantages, including improved stability, better performance, and a higher current capacity.
Power supply
The AZIMARIK can be powered from the USB-C port, CAN1 ports, or it's own BEC if fitted.
We recommend a stable power supply on the CAN1 port with a voltage ranging from 5V to 6V (max up to 12V). Power can be injected to the CAN bus with a dedicated device like the Mateksys CANPDB w/ 4A BEC & JST-GH Splitter or any device that support CAN power injection like our CAN-bus VSP driver.
The CAN-bus can also be powered by any other BEC system, a custom wiring may be required.
Example wirings
Dual Voith-Schneider propeller boat - AZIMARIK Autopilot with Dronecan VSP Driver
CAN-bus centric navigation controller for critical missions, bigger vehicles, complex networks.
- We prioritize the use of electronic components from manufacturers located within the European Union 🇪🇺 (about 90%). The remaining parts are sourced from Chinese, Japanese and Korean suppliers.
- This product uses components from the following manufacturers: Bosch 🇩🇪, Infineon 🇩🇪, STMicroelectronics 🇮🇹, NXP 🇳🇱, Würth 🇩🇪, and others.
- Fully coated version available. It provides increased protection in demanding environments, including those with salt-laden air, such as coastal or marine settings. *
- Service lifetime: 500 hours **
- Memory lifetime: 10000 write cycles
- Modular architecture with no soldering required. Allows fast CAN network nodes replacement and easy maintenance.
- 100% PX4 and ArduPilot compatible architecture
-Waypoint navigation
-Mission planning - ARM Cortex-M7 @ 480MHz
- State-of-art sensors:
- Bosch Sensortec BMI088 high-precision, industrial-grade IMU
- Infineon DPS368 barometer high-precision, industrial-grade barometer
- 2x independent CAN controllers
- 4x UART ports for peripherals, multi-purpose, DMA enabled
- All ports have native invertible RX/TX pins and are therefore fully compatible with SBUS and FPORT
- Dual GPS/GNSS ports (UART+I2C), supports up to 2x UBlox F9P or M10 modules
- GPS blending for improved accuracy and reliability
- Redundant GPS/GNSS sensors for critical missions
- 8x PWM output channels
- All DSHOT, BDSHOT, DMA enabled
- Expand to up to 32 PWM outputs using CAN bus PWM extenders

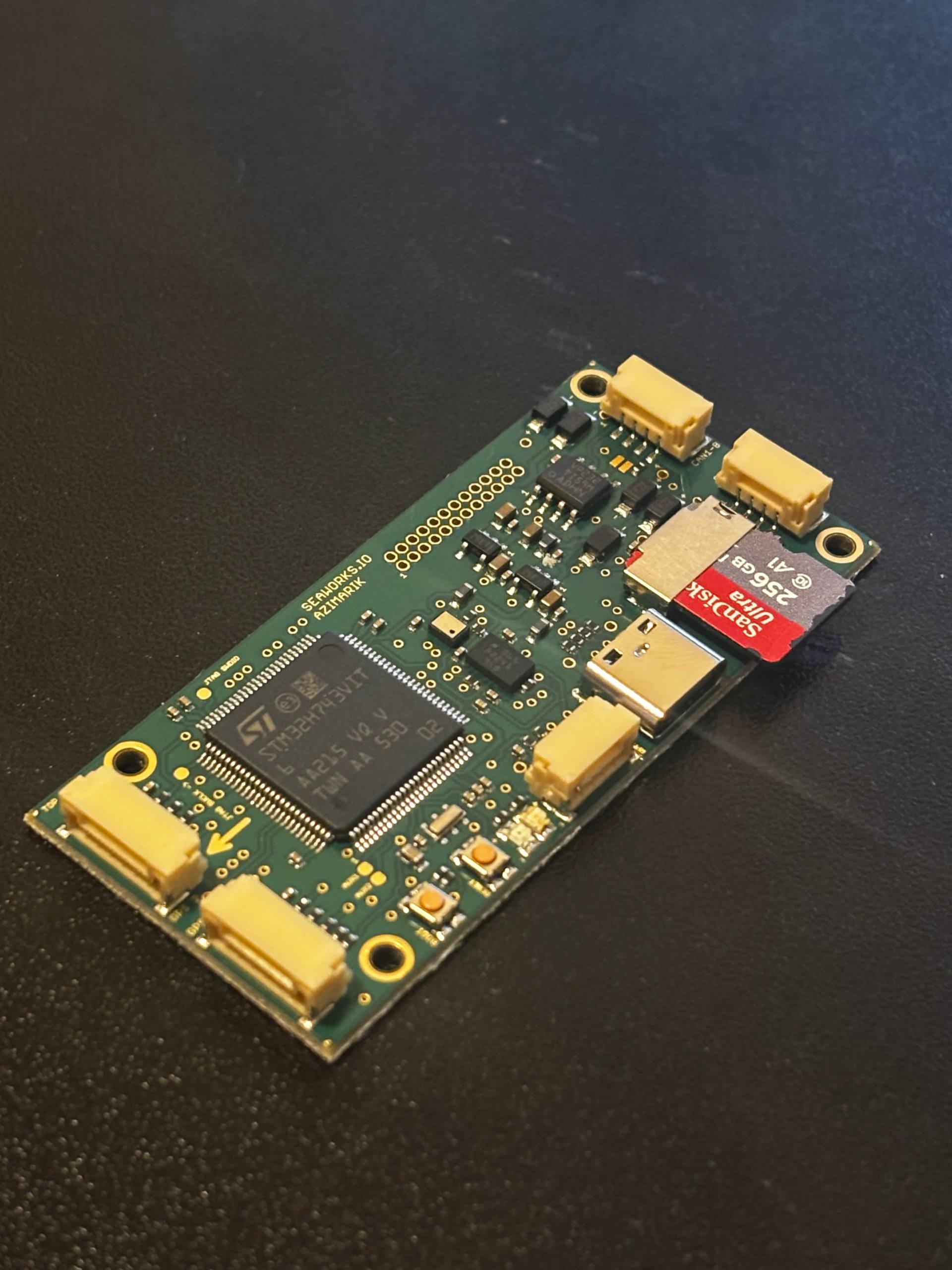

- Recessed MicroSD slot to store mission data, logs and blackbox data
- Multifunction port for voltage and current sensing
- Onboard BEC
- Output: 5.6V @ 5A on PWM connectors and CAN2
- Input: up to 60V or 12S battery via XT30
- Compact formfactor (65x30mm) ***
- USB-C programming/configuration interface
- Can be powered from USB-C, CAN ports, VSENSE port.
- Possible MAVLink interconnect with Nvidia Jetson or Raspberry Pi.
- Gold-plated contacts
- Vibration resistant JST-GH connectors
- Automotive grade ESD protection up to 15kV
- EMI filtered ports
- EMI filtered power supply
Suited for:
- Commercial UAV/USV, VTOL
- Unmanned rescue equipment, Academia, schools, research
Also available with encrypted datalink. Contact us for further details.
Regulatory compliance has to be obtained by the system integrator/OEM.
This product is RoHS compliant.
This product is not an independently functional unit and DOES REQUIRE professional installation and configuration. WEEE and EMC compliance is the responsibility of the system integrator/OEM.
EMC best practices are respected in the design of this product, including:
- Ground planes: Solid, low-impedance ground return paths.
- Decoupling capacitors at every power pin.
- LC filters on supply inputs.
- Short traces with no stubs on high-speed lines.
- Ferrite beads for EMI filtering
- Controlled impedance for SPI.
This product requires a complex configuration process with a prior use case planning, and is not plug-and-play by any means.
* That said, care must still be taken during installation and maintenance. The coating improves resistance but does not eliminate the risk of corrosion, especially under severe or prolonged exposure. Service intervals, environmental factors, and mechanical stress all remain important considerations. This version should be used with an understanding of its limits. Additional protection or precautions may be necessary depending on the application. We can provide further guidance on use in harsh environments if needed.
** In practice, actual service life can vary considerably depending on operating environment and usage. Especially harsh conditions—such as high humidity, salt exposure, temperature extremes, or mechanical stress—as well as incorrect installation or use outside specified parameters, can significantly reduce the expected lifetime.
*** The appearance and design of the board are subject to changes. The functionality and size always remain unchanged.
Lite version without BEC: 105€ (excl. DPH/VAT) per unit.
Base price 190€ (excl. DPH/VAT) per unit.
Aerospace grade PCB & components and Q/C: 355€ (excl. DPH/VAT) per unit. MOQ: 5 units
Aerospace grade, fully coated + enclosure: 480€ (excl. DPH/VAT) per unit. MOQ: 5 units
Upon request, we provide a variant of this product with potting (plastic, resin).
