CAN-DPS310-V1 networked barometer sensor node NEW

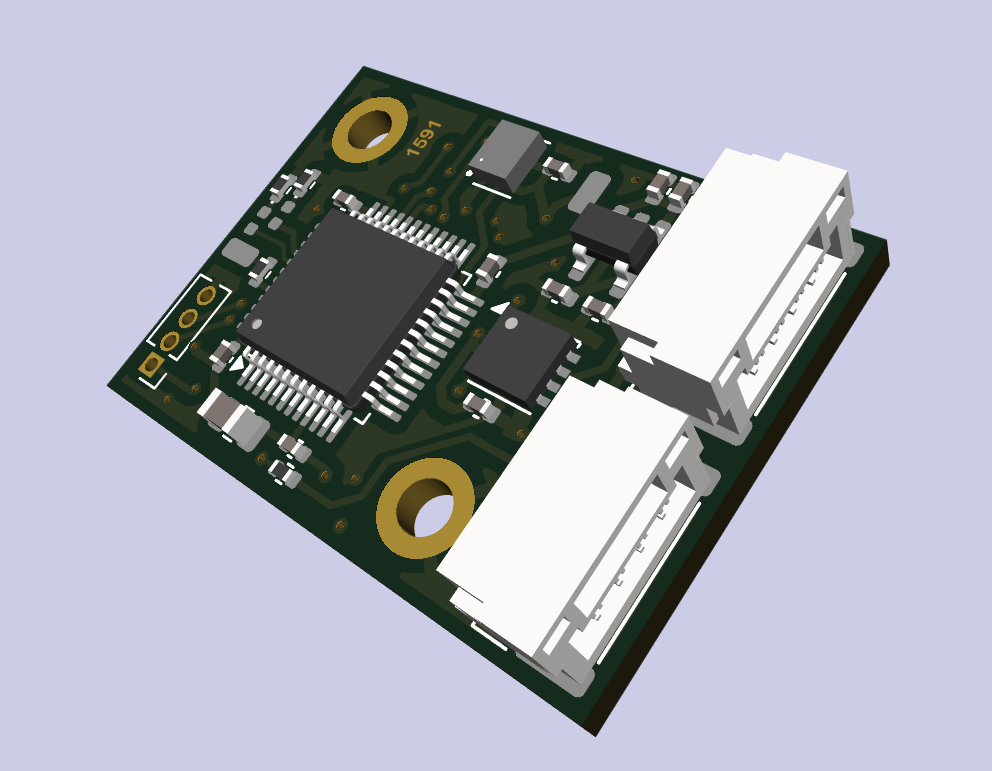

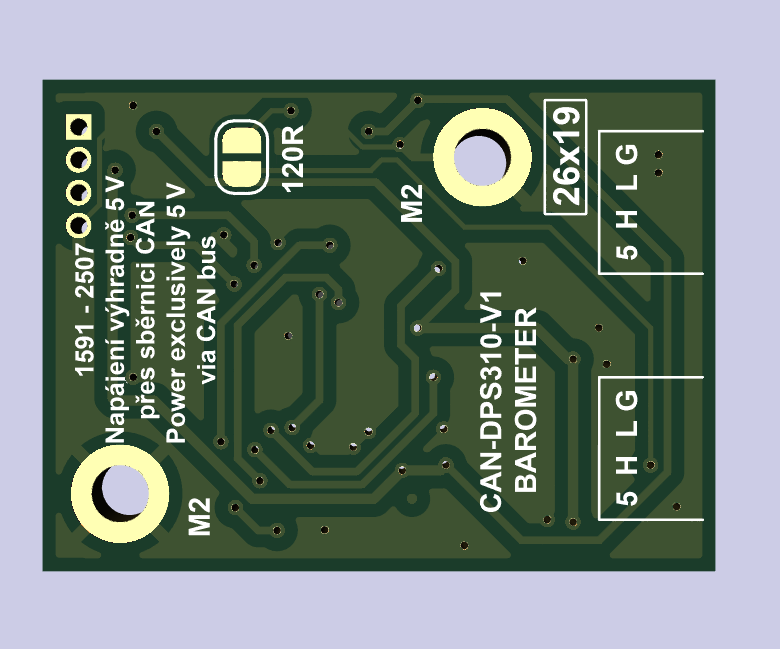

This CAN barometer module integrates the DPS310 digital pressure sensor onto a compact, lightweight PCB weighing just 2g. It features dual JST-GH connectors for daisy-chain CAN bus integration in UAV. The DPS310 sensor provides high-resolution measurements, temperature compensation, and stable long-term drift characteristics. Ideal for flight controllers or autonomous systems, the module includes onboard voltage regulation and ESD protection, features a DroneCAN-compatible firmware.

• Ultra-lightweight (2g) with dual JST-GH CAN connectors for easy chaining
• Pressure accuracy ±1 hPa; resolution up to ±0.002 hPa (approx. 0.02 m altitude)
• Integrated temperature compensation and low drift (±0.5 Pa/year typical)
• Supports DroneCAN protocol with configurable data rates and node ID
• PX4/Pixhawk compatible CAN pinout and power supply

Available with both consumer and aerospace-grade quality control.

We offer an optional ESD shield for this module, to be used in environments with high electrical noise.

This product is not an independently functional unit and DOES REQUIRE professional installation and configuration.

Regulatory and compliance duties must be performed by the system integrator.

Not intended for use in manned systems.

* The appearance and design of the module are subject to changes. The functionality always remain unchanged.

* The sensor node can misbehave in following conditions: pressure port obstruction,vibration and airflow disturbance, extreme temperature variations, electrical noise, and power stability Issues.
