CAN panel mount (M8 to JST-GH) NEW

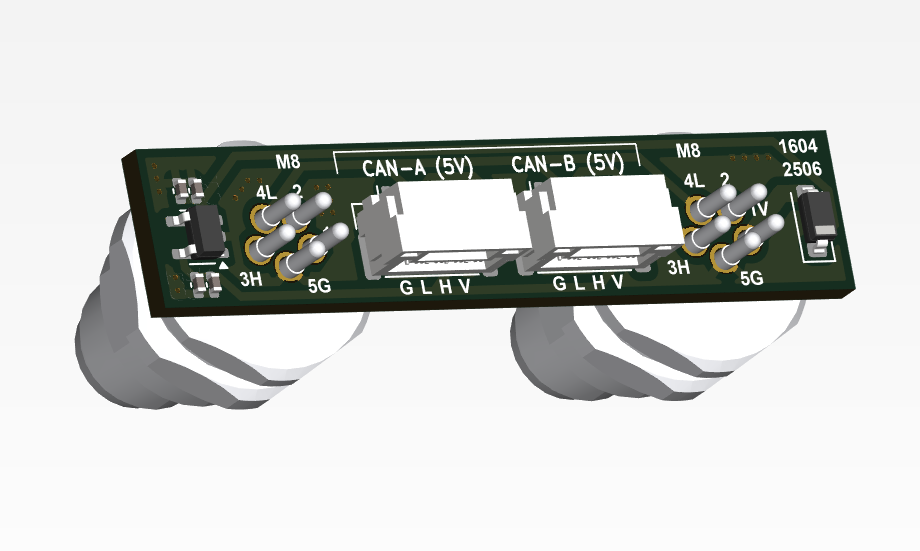

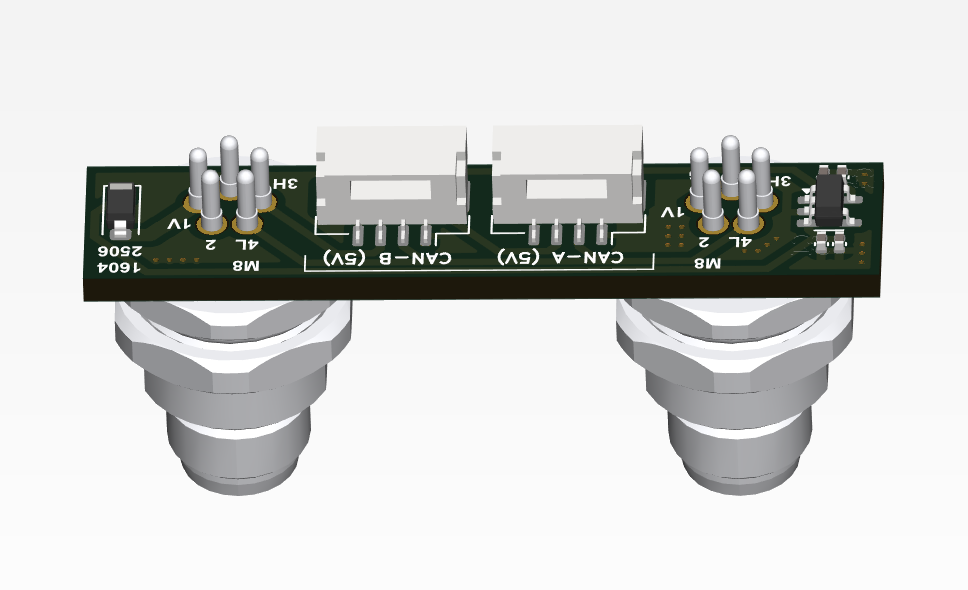

A CAN panel mount (M8 5-pin to JST-GH 4-pin) with an onboard 24 V to 5 V regulator is a compact interface used in DroneCAN systems to connect CAN-enabled devices. It features a 5-pin M8 connector for panel-mount installation and field connection, wired according to DroneCAN standards, and a 4-pin JST-GH connector for device-side connection. The integrated DC-DC converter steps down 24 V input from the CAN power line to a regulated 5 V output, supplying both power and CAN signals to downstream 5 V devices. It is intended for use in enclosures where the external connection must be rugged, while the internal side connects to lightweight components such as sensors.

• Dual M8 5-pin connectors for panel-mount and field connection
• Dual JST-GH 4-pin connectors for device-side connection
• Onboard 500mA 5 V DC-DC converter
• Max. M8 connector pass-through current: 3 A
• Available in different price classes, from consumer to aerospace-grade connectors and regulators

Available with both consumer and aerospace-grade quality control.

This product is not an independently functional unit and DOES REQUIRE professional installation and configuration.

Regulatory and compliance duties must be performed by the system integrator.

Not intended for use in manned systems.

* The appearance and design of the module are subject to changes. The functionality always remain unchanged.
