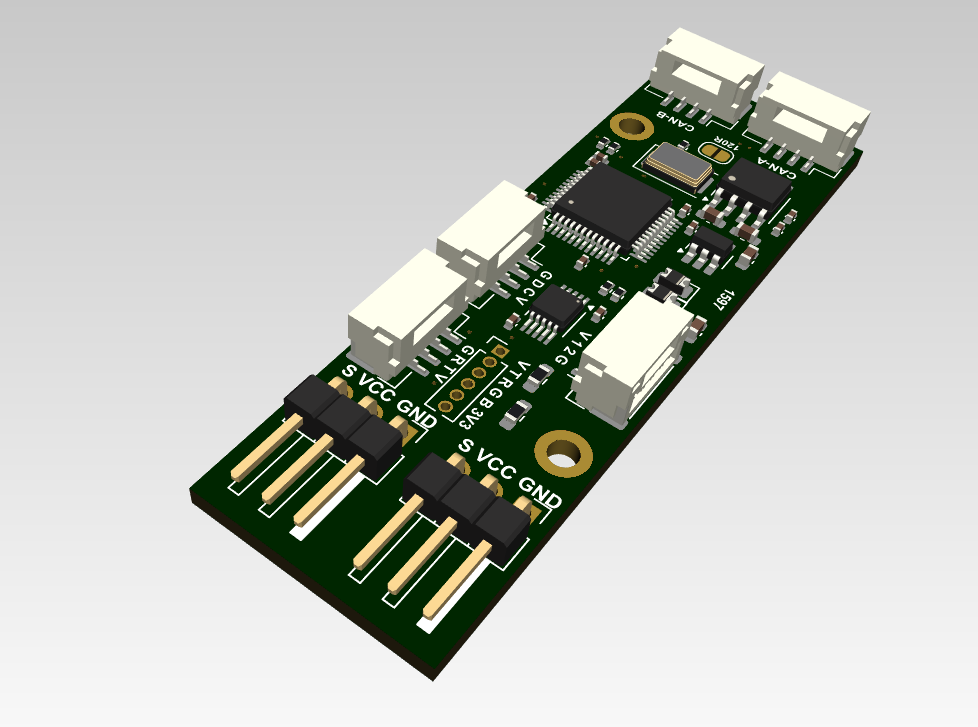

DroneCAN networked PWM–DSHOT Driver and Hub NEW

Compact DroneCAN expansion module featuring dual JST-GH CAN ports, dual PWM/DSHOT outputs for ESCs and servos, extra UART and I2C for probes and rangefinders. Supports bus voltage monitoring, configurable node ID and data rate, with PX4/Ardupilot-compatible pinout. Designed to be installed directly on each motor arm of larger multirotor vehicles. Provides 2x local PWM/DSHOT outputs for the ESC, also suitable for contra-rotating configurations. Convenient I2C/UART connections for sensors mounted on the same arm (such as airspeed probes, rangefinders, or LIDAR). This reduces wiring complexity on big platforms.

• Lightweight (6g) with dual JST-GH CAN connectors for easy chaining
• Arm® Cortex®-M4 @ 80MHz
• 2x PWM outputs on JR connectors or soldered.
• Supports DSHOT and PWM protocols.
• 1x UART expansion ports
• 1x I2C expansion ports
• 2x GPIO outputs for positioning LEDs or other devices.
• Bus voltage monitoring (VCAN)
• Supports DroneCAN protocol with configurable data rates and node ID
• PX4/Ardupilot/Pixhawk compatible CAN pinout and power supply

Available with both consumer and aerospace-grade quality control.

We offer an optional ESD shield for this module, to be used in environments with high electrical noise.

This product is not an independently functional unit and DOES REQUIRE professional installation and configuration.

Regulatory and compliance duties must be performed by the system integrator.

Not intended for use in manned systems.

* The appearance and design of the module are subject to changes. The functionality always remain unchanged.
