DroneCAN-HUB-V1 networked UART and I2C sensor hub NEW

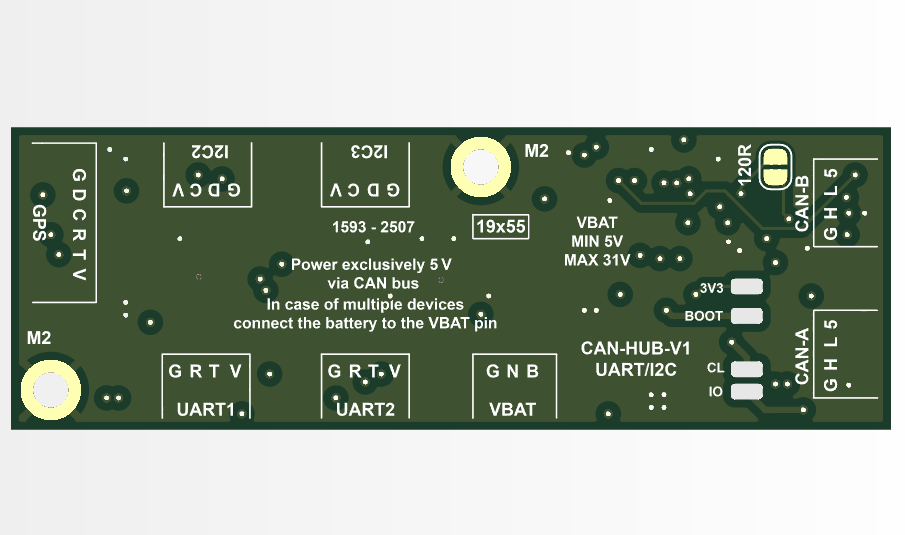

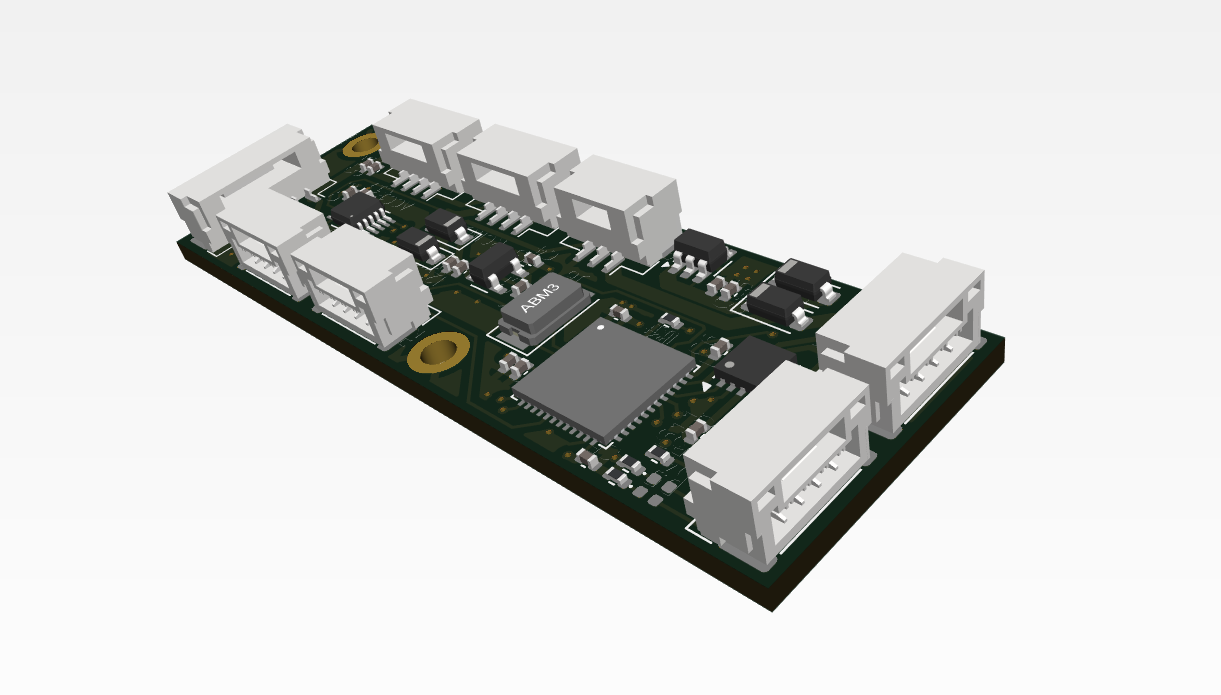

Compact DroneCAN expansion module featuring dual JST-GH CAN ports, UART, I2C, and a combined GPS port. Supports battery voltage monitoring, configurable node ID and data rate, with PX4/Ardupilot-compatible pinout. Especially useful for airspeed probes, rangefinders, LIDAR, and other sensors that require I2C or UART connections.

• Lightweight (6g) with dual JST-GH CAN connectors for easy chaining
• Arm® Cortex®-M4 @ 80MHz
• 3x UART expansion ports
• 2x I2C expansion ports
• 1x GPS combined UART/I2C port
• Battery voltage monitoring (VSENSE)
• Supports DroneCAN protocol with configurable data rates and node ID
• PX4/Ardupilot/Pixhawk compatible CAN pinout and power supply

Available with both consumer and aerospace-grade quality control.

We offer an optional ESD shield for this module, to be used in environments with high electrical noise.

This product is not an independently functional unit and DOES REQUIRE professional installation and configuration.

Regulatory and compliance duties must be performed by the system integrator.

Not intended for use in manned systems.

* The appearance and design of the module are subject to changes. The functionality always remain unchanged.
